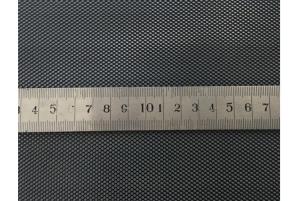

Strong Strength ISO9001 1.5mm Strand Diamond Shaped Steel Mesh

Guangzhou Panyu Jintong Wire Mesh Manufactory

Strong Strength ISO9001 1.5mm Strand Diamond Shaped Steel Mesh

Brand Name : Jintong

Model Number : JT-gbw11

Certification : ISO9001

Place of Origin : Guangzhou,China

MOQ : 100 square

Price : USD 4.8-18.5 per square

Payment Terms : L/C, T/T, Western Union

Supply Ability : 150000 square per month

Delivery Time : 7-15 days

Packaging Details : Pallet or wooden case

Product Name : expanded metal lath

After-sale Service : Online Technical Support, Return and Replacement, N/A

Project Solution Capability : Graphic Design,N/A, others

Material : Galvanized, Painting, Aluminum etc

Color : Silver, blue, yellow, red, or customized

Technical : stretch and expanded metal lath

Shape : diamond, square, hexagonal or special shape

strand : 0.5---50mm

Short way of mesh : 5-80mm

Long way of mesh : 12.5-200mm

Contact Now

25×12.5mm Hole Wall Plaster Galvanized Mesh Expanded Metal Lath

Galvanized Mesh Expanded Metal Lath

Different name of matting steel plate net: The matting steel plate net produced by our factory is a kind of light steel plate net produced in order to prevent the wall from cracking due to the change of temperature, because the aperture is small, so it is also called: small hole steel plate net, small steel plate net, micro hole steel plate net. According to the thickness of the steel plate net is also known as: light steel plate net, press the knife hole is also known as 25 knife steel plate net, according to the purpose is also known as the wall steel plate net.

Strong Strength ISO9001 1.5mm Strand Diamond Shaped Steel MeshStrong Strength ISO9001 1.5mm Strand Diamond Shaped Steel Mesh

Specification
Sheet Thickness Opening in Width
mm
Opening in Length
mm
Stem Roll Width
m
Roll Length
m
Weight
kg/m2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26

Strong Strength ISO9001 1.5mm Strand Diamond Shaped Steel Mesh

Galvanized Mesh Expanded Metal Lath

Characteristics of plastered steel plate net produced by rhomboid steel plate net factory:

1. Small aperture and dense

2. Flat screen

3. Uniform pore size

4. Light weight, strong mesh surface

5. Strong tensile strength

6. The cost is low

Use: plastering steel plate is widely used in all kinds of indoor wall plastering, outdoor wall insulation plastering.

Strong Strength ISO9001 1.5mm Strand Diamond Shaped Steel MeshStrong Strength ISO9001 1.5mm Strand Diamond Shaped Steel Mesh

Galvanized Mesh Expanded Metal Lath

The production equipment of plate-plate net: with 63 tons of punching shear medium plate-plate net punching and shearing machine production

process: punching and shearing drawing and forming material: cold plate, galvanized plate, stainless steel plate.

Strong Strength ISO9001 1.5mm Strand Diamond Shaped Steel Mesh
